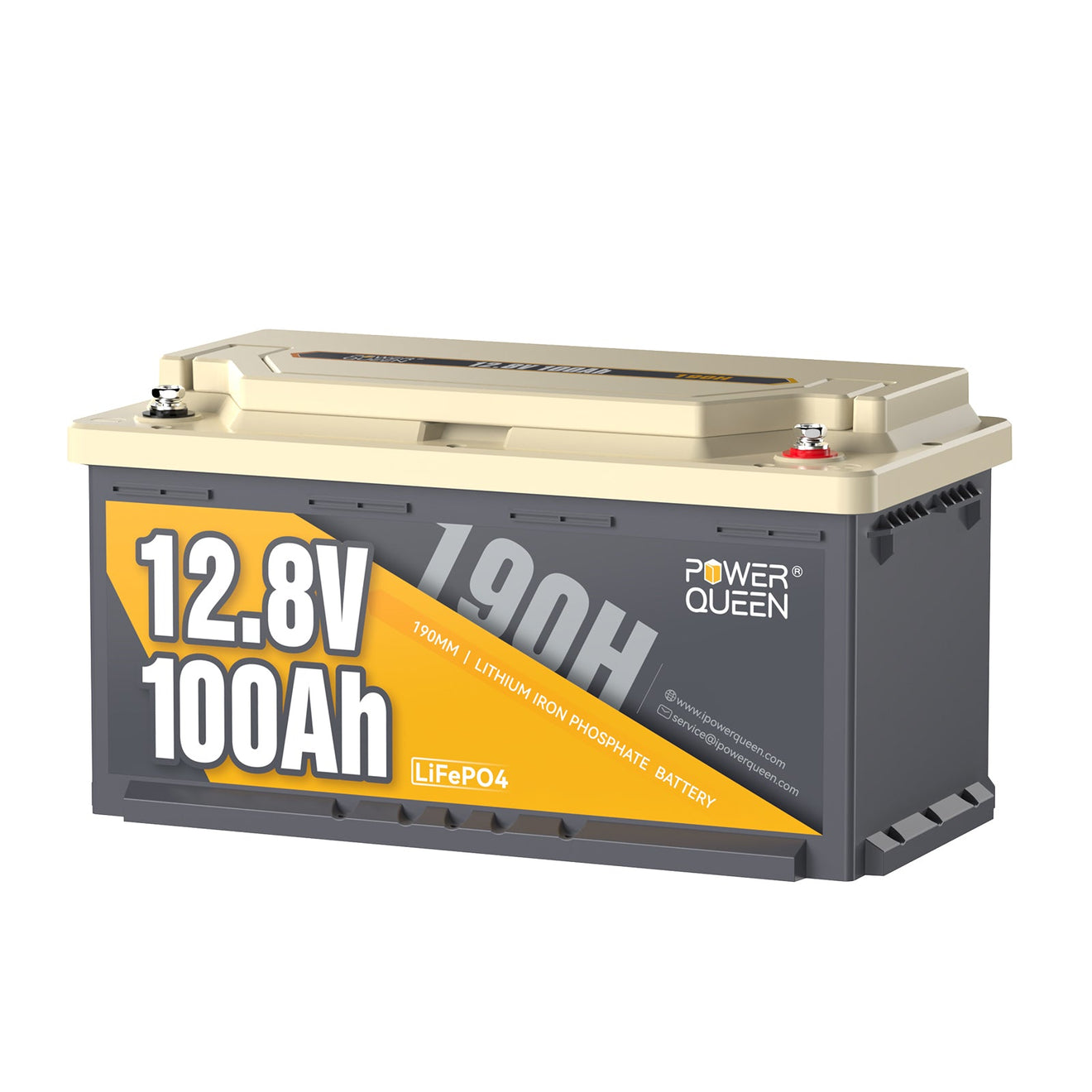

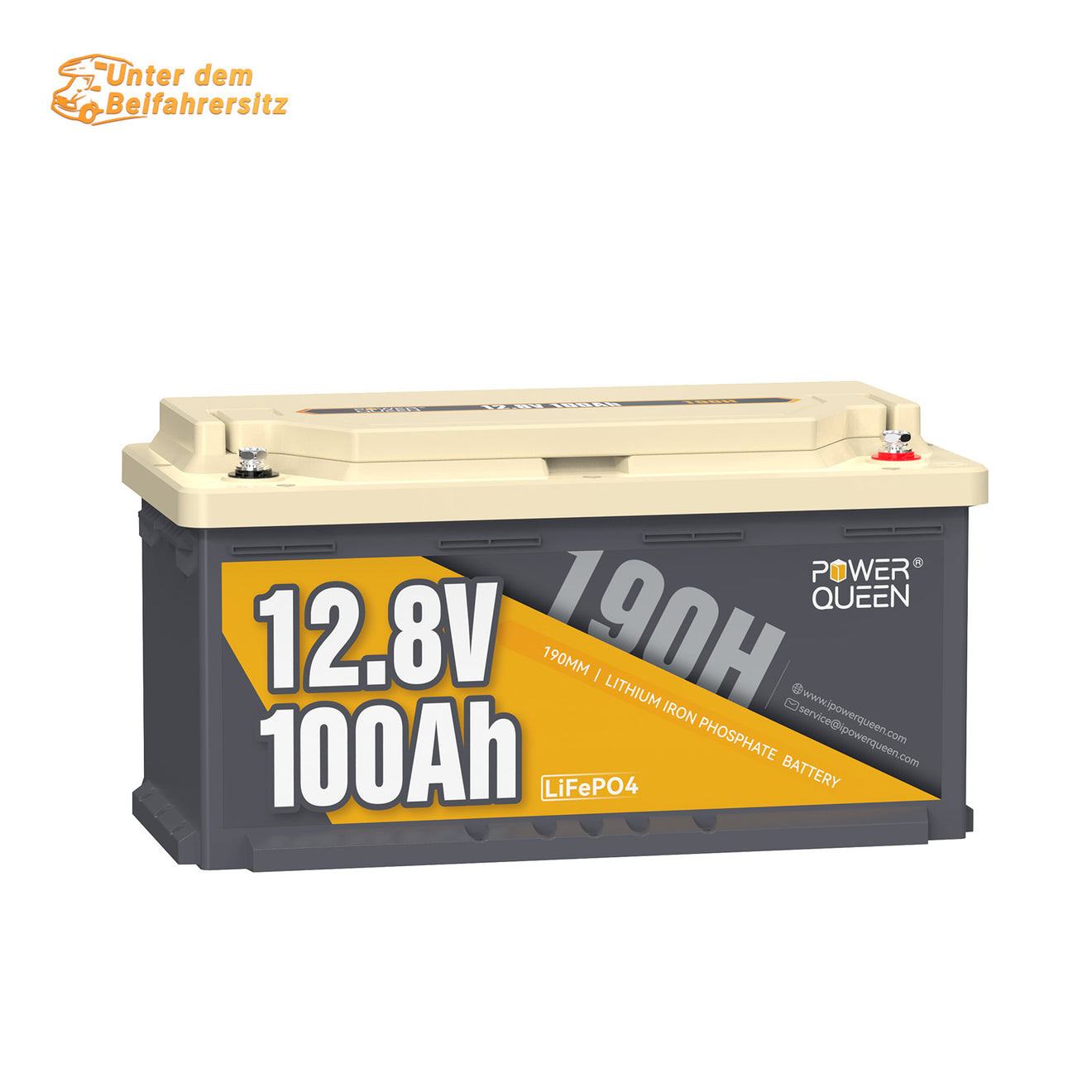

[Suitable size for RVs] The size and design of this battery are specially designed for RVs. The height of 188 mm is ideal for installation in modern motorhomes, whose installation height is usually 190 mm. An outstanding feature is their very good weight-space-performance ratio. They owe this to their very high energy density, which is three times higher than that of significantly heavier lead batteries. With the same size, it is a perfect replacement for lead, gel and AGM batteries.

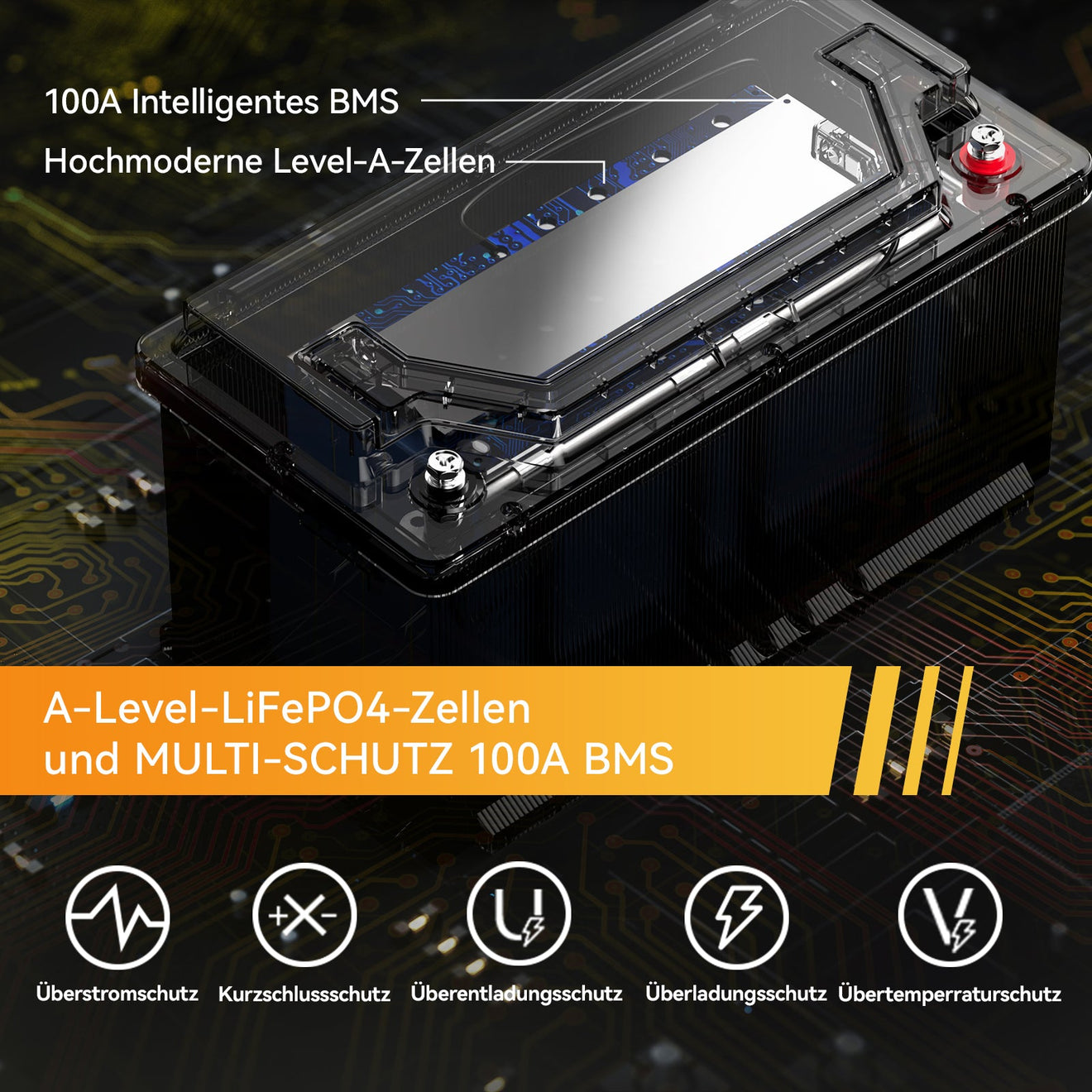

[Integrated BMS for reliable operation] Lithium iron phosphate technology (LiFePO4) is currently the safest lithium technology on the market. Premature failure due to external influences or incorrect use is effectively prevented with the battery management system (BMS), which protects the battery against overcharging, over-discharging, over-temperature, over-current and short circuit.
Product name
12.8V 100Ah
Cell
Prismatic LiFePO4 cells

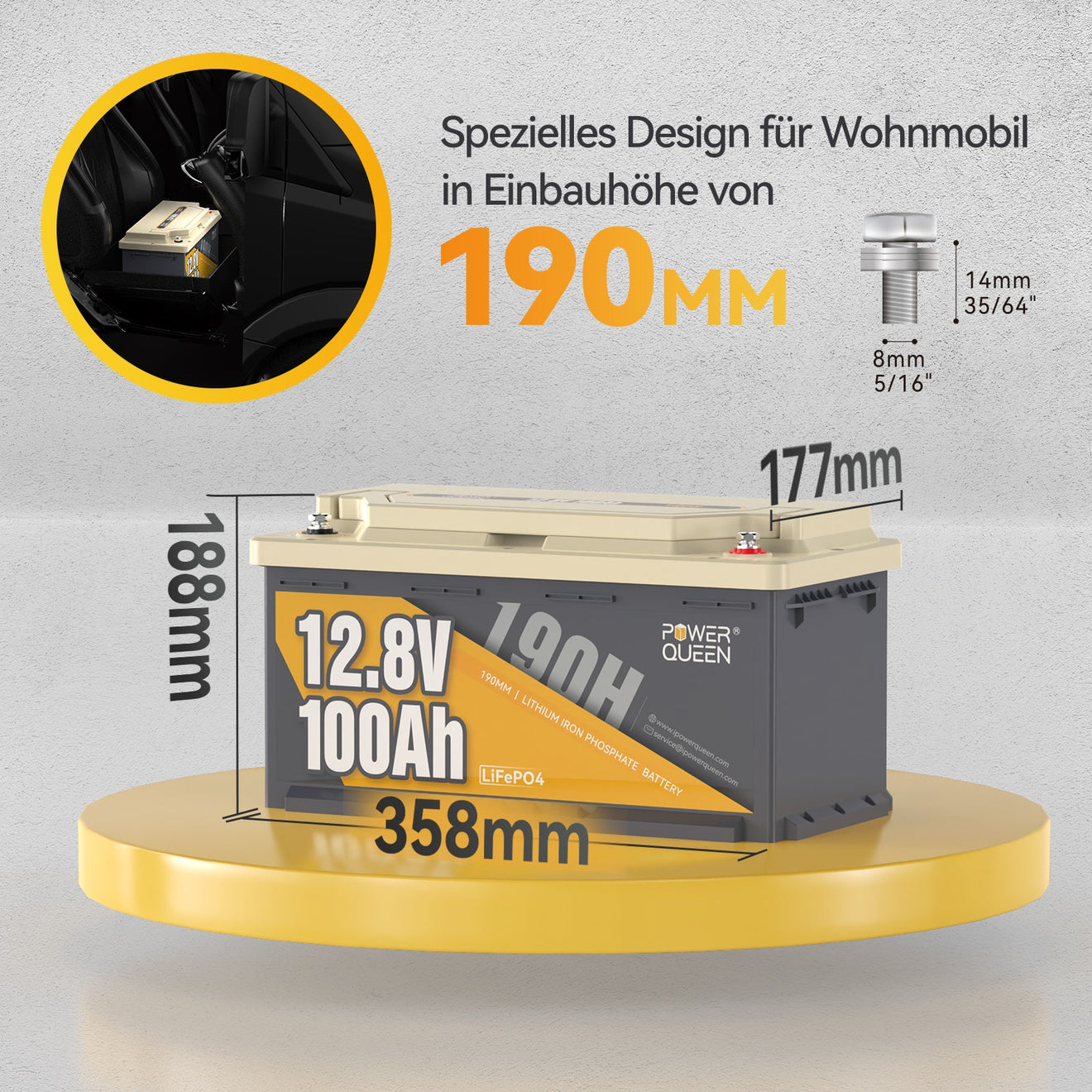

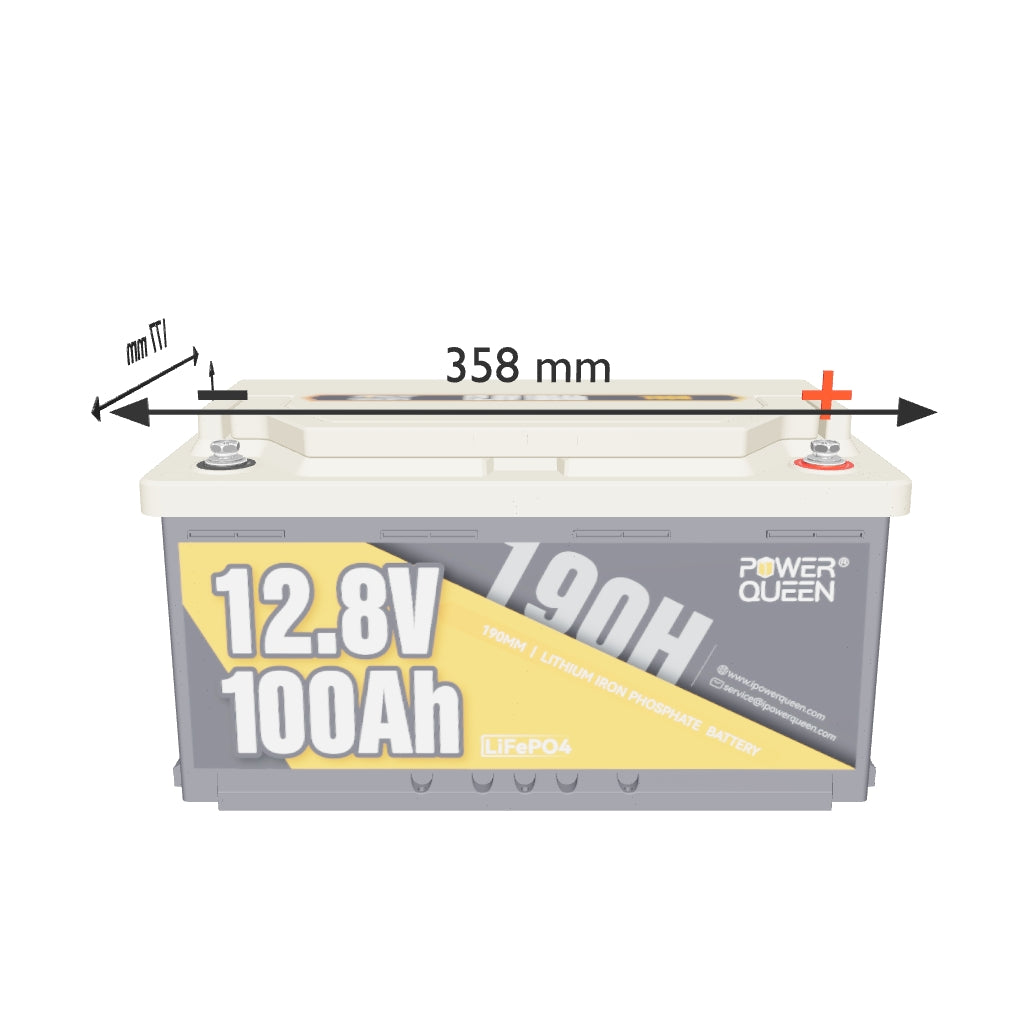

Dimensions (L*W*H)
L 358*W 177 *H 188 mm
Weight
11kg
Operating voltage
12.8V
Nominal voltage
12.8V
Charging voltage
14.4±0.2V
Max. Continuous load power
1280W
Energy
1280Wh
Max. Continuous charging current/continuous discharging current
100A
Nominal capacity
100Ah
Usable capacity
100Ah
Load method
CC/CV
Recommended charging current
20A (0.2C)
Battery management system (BMS) board
100A
Max. Discharge current 100mS
400A
Cycle life
4000 cycle
Internal resistance
≤40 mΩ
Housing
(ABS) plastic
Protection class
IP65
Working temperature range
Charging
0℃-50℃
Unload
-20℃-60℃
Larger
-10℃-50℃
