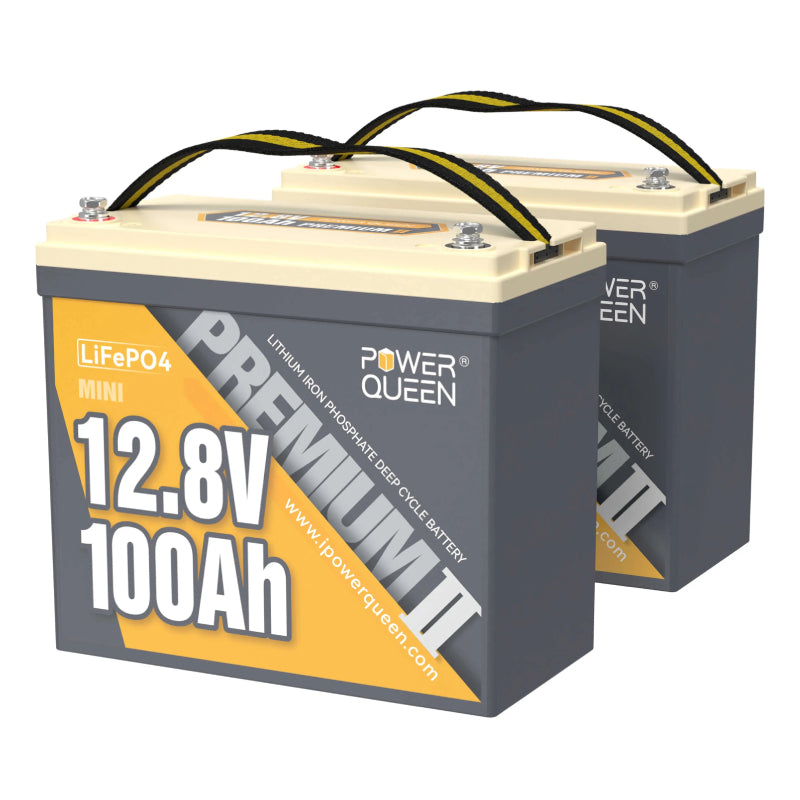

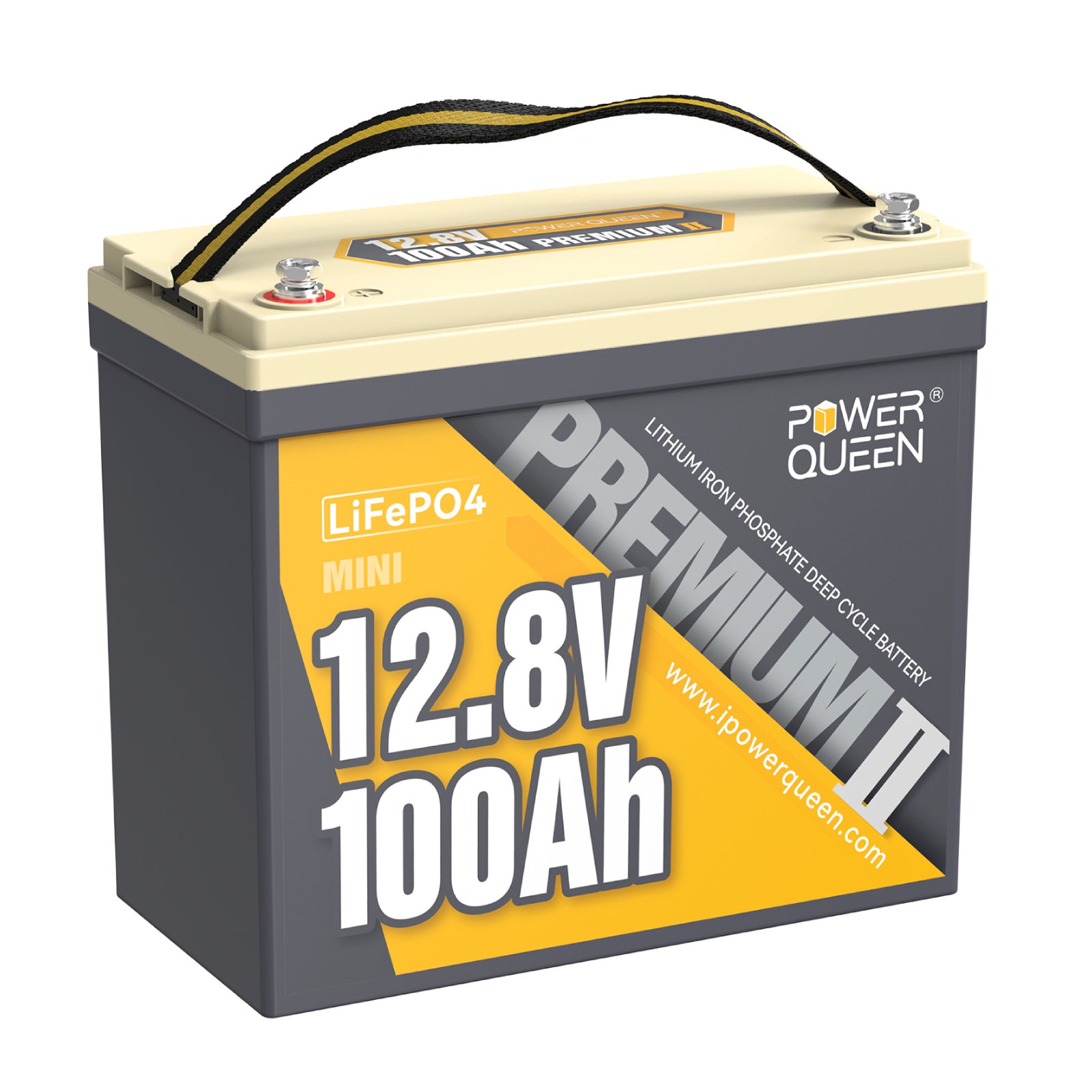

Power Queen 12V 100Ah Mini LiFePO4 Battery, Integrated 100A BMS
€349,99 – €1.399,96
In stockIn StockSold outKostenloser Versand für alle Bestellungen in die EU (Außer Zypern, Malta und Irland)

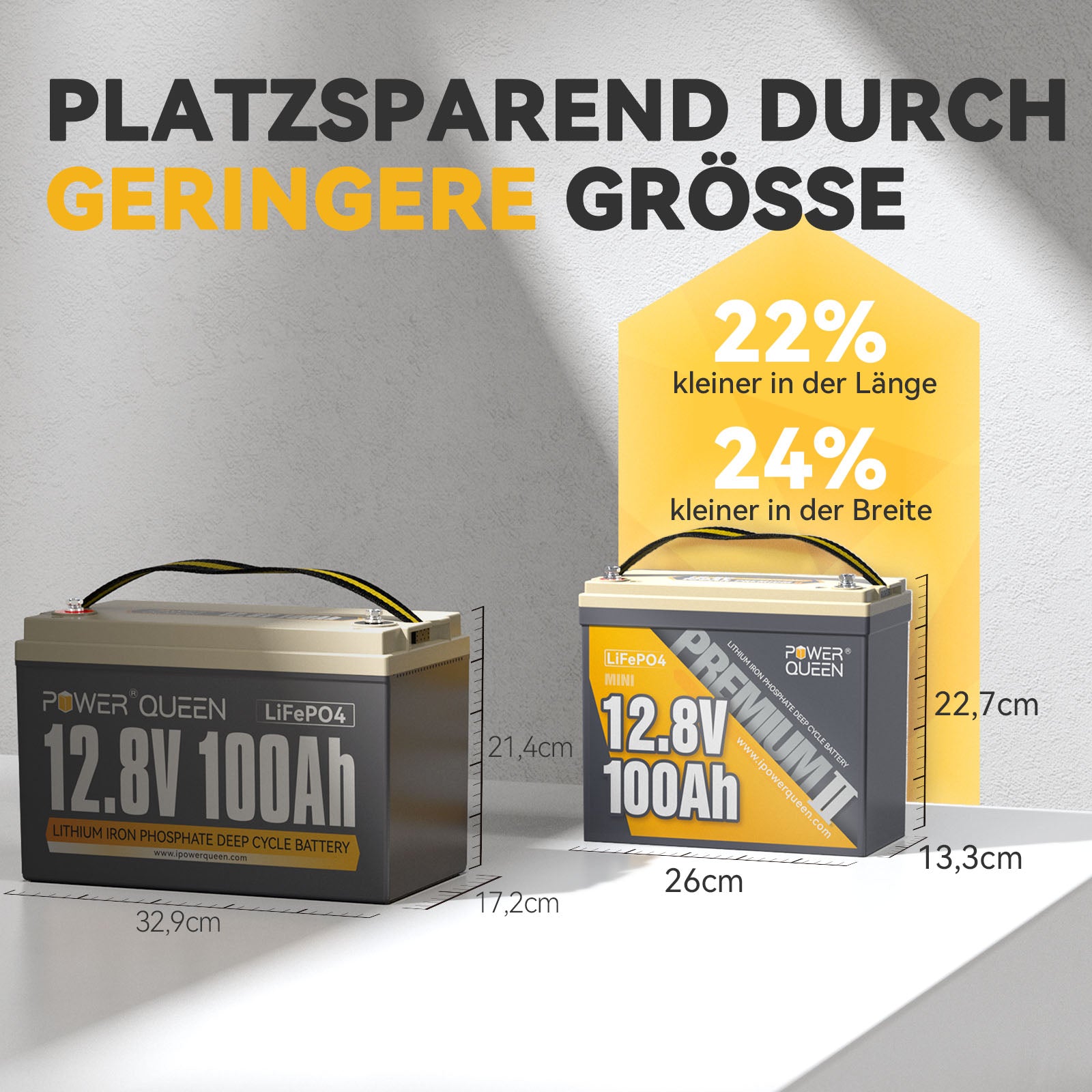

- 【22% smaller in length & 24% smaller in width】Power Queen 12V 100Ah Mini LiFePO4 battery is 22% smaller in length & 24% smaller in width than 12V 100Ah LiFePO4 battery . The dimensions of the Power Queen 12V 100Ah Mini LiFePO4 battery are L26*W13.3*H22.7CM, while the dimensions of the Power Queen 12V 100Ah LiFePO4 battery are L33*W17.3*H22.4CM. The Power Queen 12V 100Ah mini lithium battery takes up less space, making it ideal for energy storage in RVs and ships.
-

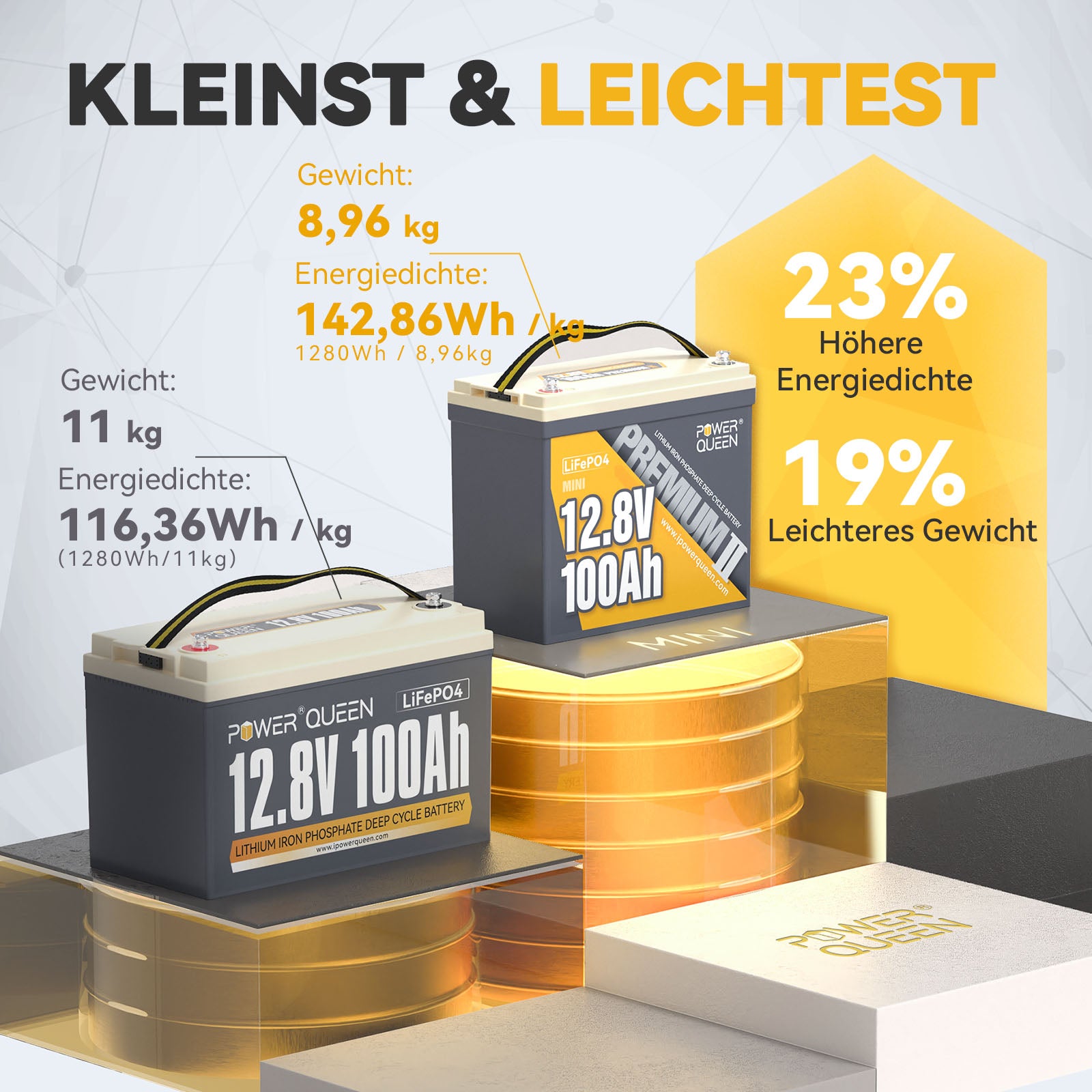

【19% lighter weight & 23% higher energy density】Power Queen 12V 100Ah Mini LiFePO4 battery is 8.96kg and 1280Wh/8.96lbs(142.86Wh/kg) energy density, while the 12V 100Ah Lithium battery carries 11kg and 1280Wh/11kg(116.36Wh/kg) energy density. The battery supports a good weight-space-performance ratio.
-

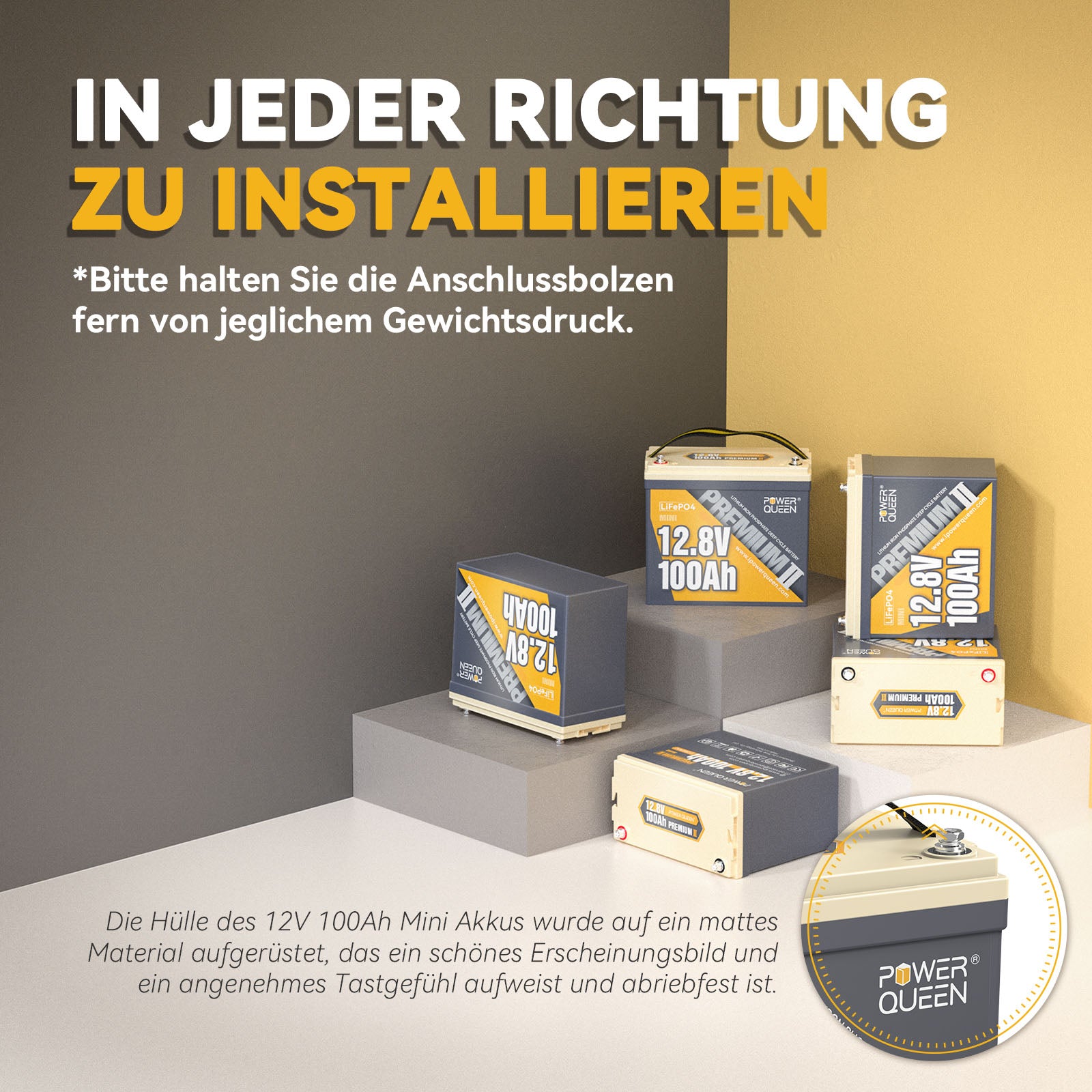

【Free Installation in any direction】Power Queen 12V 100Ah Mini LiFePO4 battery can be freely installed in any direction without restrictions. You can even turn them upside down. This allows you to place this battery flexibly and save space.
-

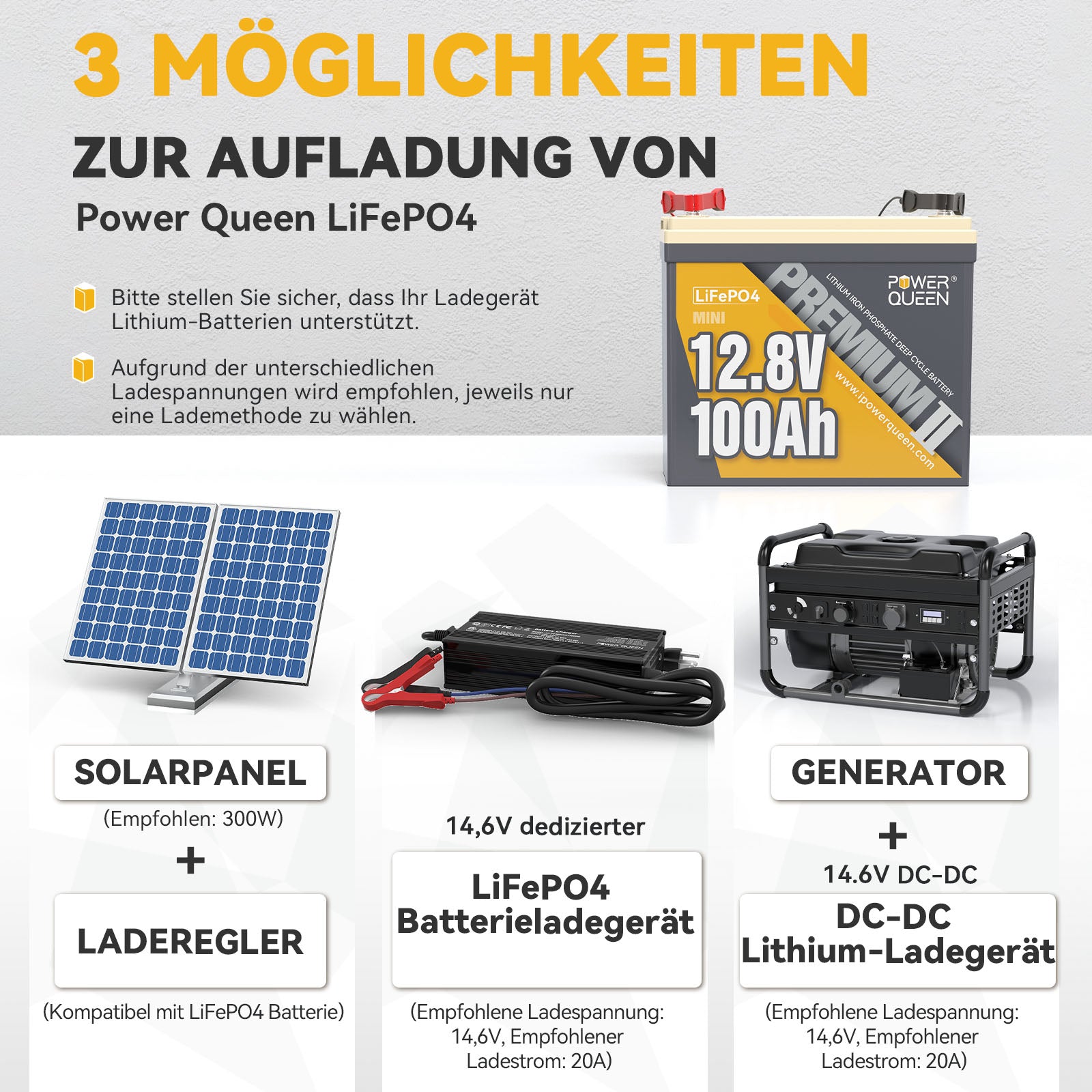

【10 years lifespan & 15000 cycles】The lifespan of Power Queen 12V 100Ah Mini LiFePO4 battery can last up to 10 years. The battery supports 4000+ cycles under 100% DOD (depth of discharge), 6000+ cycles under 80% DOD and 15000+ cycles under 60% DOD. We recommend a 14.6V 20A charger, with which you can achieve a 100% charge in 5 hours.
-
【5-year warranty & 24/7 customer service】Power Queen offers a 5-year warranty from the date of purchase. We strive to provide the safest battery and the most professional service. The batteries are shipped directly from our warehouse in Germany and arrive in EU countries within 2 to 7 working days.
-

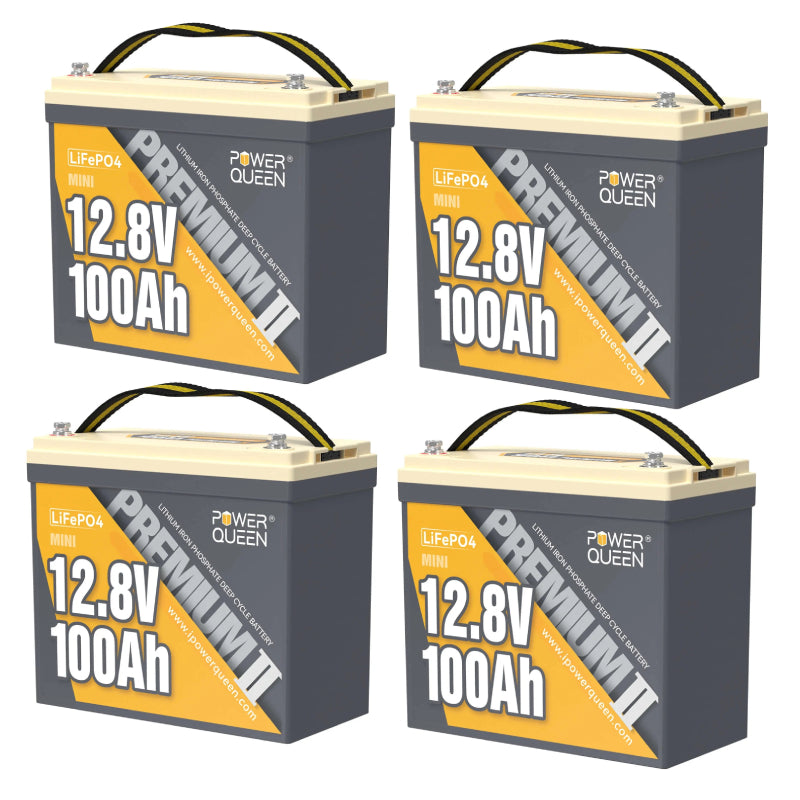

【Max. 20.48kWh capacity expansion】Power Queen 12V 100Ah lithium battery contains 100Ah energy and supports up to 1280W power. They can be connected in series and in parallel. By connecting 4 times in parallel and in series, the battery bank of 48V (51.2V) 400Ah is possible, which supplies 20.48kWh of energy. With the large energy, it can meet the needs of almost all electrical devices.
- Note: This battery is NOT suitable for use as a starter battery or golf cart battery, for further information please contact our service team: service.de@ipowerqueen.com
Product name
12.8V 100Ah Mini
Cell
Prismatic LiFePO4 cells
Dimensions (L*W*H)
L 260*W 133 *H 227.5 mm
Weight
8.96kg
Operating voltage
12.8V
Nominal voltage
12.8V
Charging voltage
14.4±0.2V
Max. Continuous load power
1280W
Energy
1280Wh
Max. Continuous charging current/continuous discharging current
100A
Nominal capacity
100Ah
Usable capacity
100Ah
Load method
CC/CV
Recommended charging current
20A (0.2C)
Battery management system (BMS) board
100A
Max. Discharge current 5 seconds
280A
Cycle life
4000 cycle
Internal resistance
≤40 mΩ
Housing
(ABS) plastic
Protection class
IP65
Working temperature range
Charging
0℃-50℃
Unload
-20℃-60℃
Larger
-10℃-50℃
